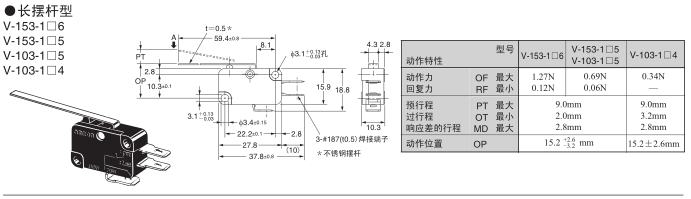

驅動桿 端子規格 接觸規格 動作力(OF)最大 15A 10A 耐熱型 15A 10A 長擺桿型

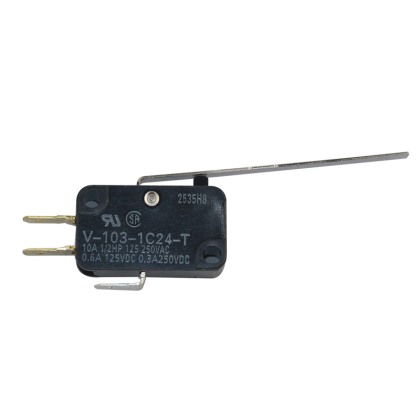

焊接端子(A) SPDT 1.27N V-153-1A6 --- V-153-1A6-T --- SPST-NC V-153-2A6 --- --- --- SPST-NO V-153-3A6 --- --- --- SPDT 0.69N V-153-1A5 V-103-1A5 V-153-1A5-T V-103-1A5-T SPST-NC V-153-2A5 V-103-2A5 --- --- SPST-NO V-153-3A5 V-103-3A5 --- --- SPDT 0.34N --- V-103-1A4 --- V-103-1A4-T SPST-NC --- V-103-2A4 --- V-103-2A4-T SPST-NO --- V-103-3A4 --- V-103-3A4-T #187接線片端子(C2) SPDT 1.27N V-153-1C26 --- V-153-1C26-T --- SPST-NC V-153-2C26 --- --- --- SPST-NO V-153-3C26 --- --- --- SPDT 0.69N V-153-1C25 V-103-1C25 V-153-1C25-T V-103-1C25-T SPST-NC V-153-2C25 V-103-2C25 --- --- SPST-NO V-153-3C25 V-103-3C25 --- --- SPDT 0.34N --- V-103-1C24 --- V-103-1C24-T SPST-NC --- V-103-2C24 --- --- SPST-NO --- V-103-3C24 --- --- #250接線片端子(C) SPDT 1.27N V-153-1C6 --- V-153-1C6-T --- SPST-NC V-153-2C6 --- --- --- SPST-NO V-153-3C6 --- --- --- SPDT 0.69N V-153-1C5 V-103-1C5 V-153-1C5-T V-103-1C5-T SPST-NC V-153-2C5 V-103-2C5 --- --- SPST-NO V-153-3C5 V-103-3C5 --- --- SPDT 0.34N --- V-103-1C4 --- V-103-1C4-T SPST-NC --- V-103-2C4 --- --- SPST-NO --- V-103-3C4 --- ---
